Home » Weld-On D-Ring Anchor
Falltech

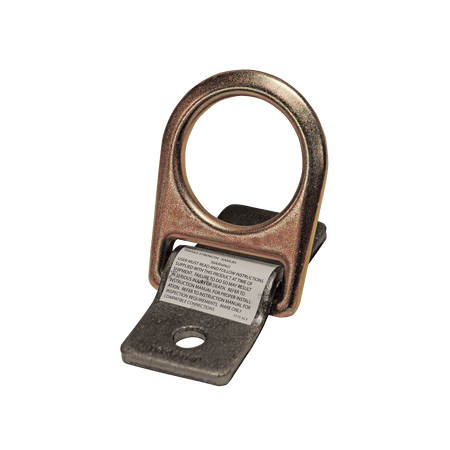

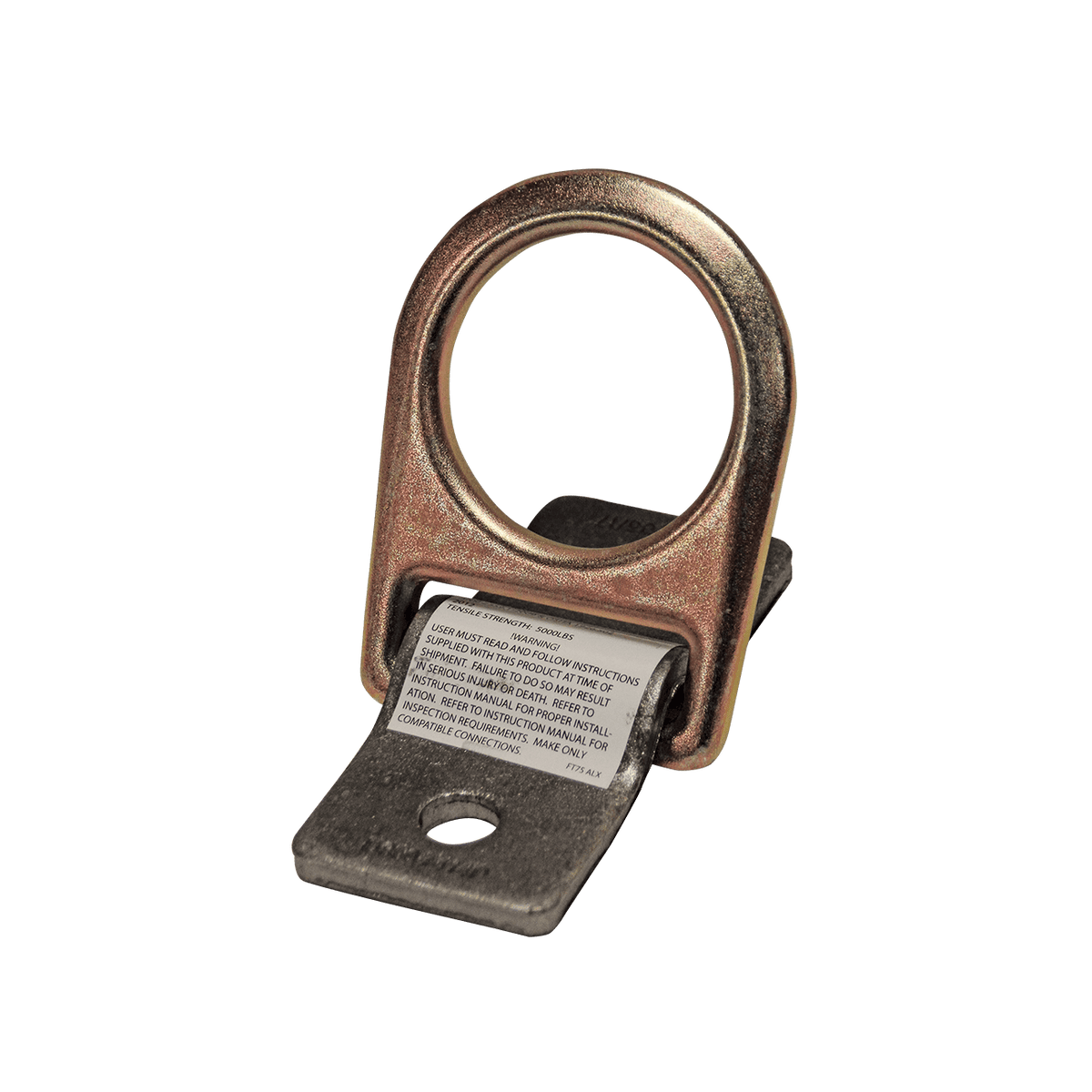

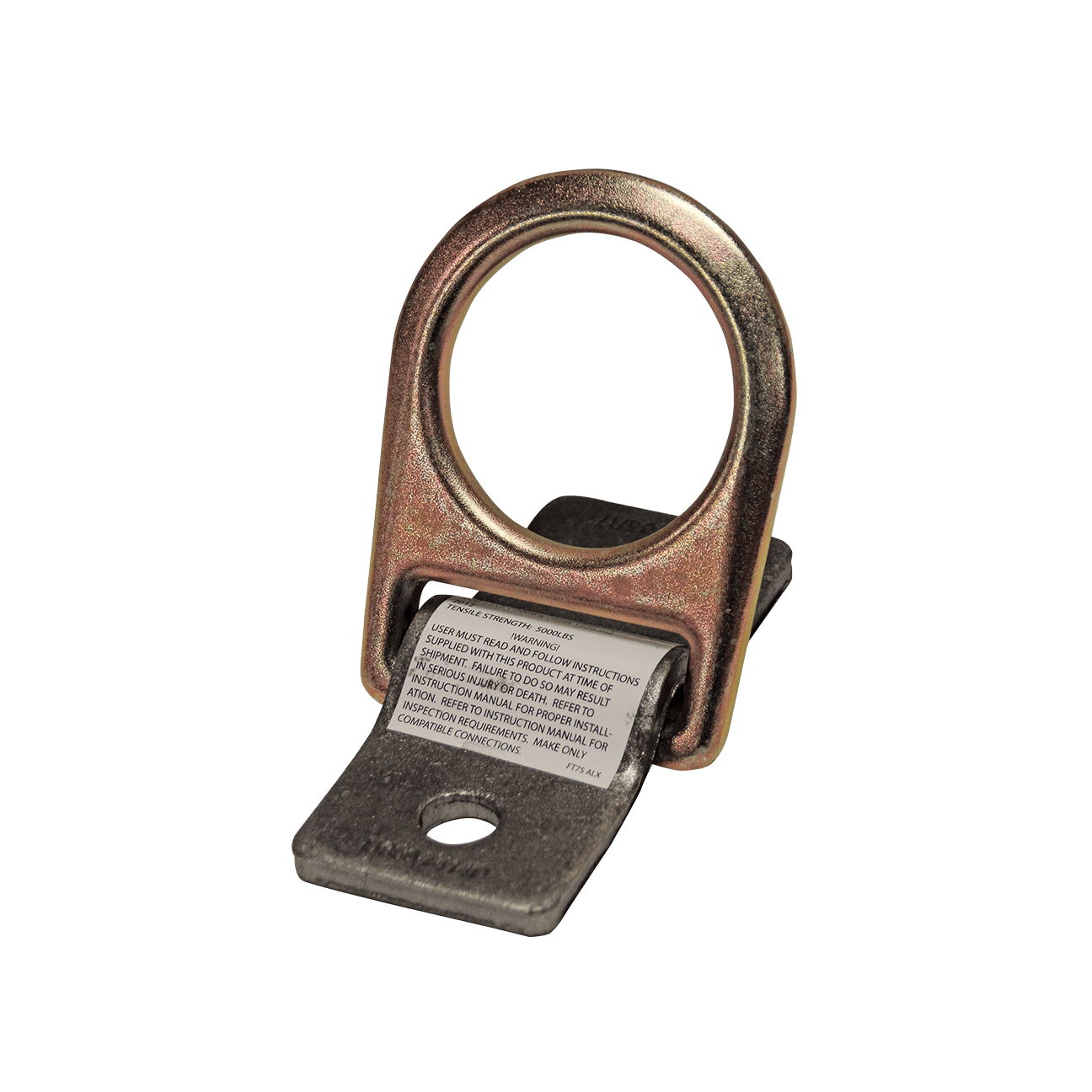

Weld-On D-Ring Anchor

SKU: 7414P
$29.56
Estimated Lead Time:

The Weld-On D-Ring Anchor has an unthreaded mounting hole and is welded or bolted to structural steel or beams to create a permanent attachment point. Sometimes called bolt-on or weld-on anchors, they are used when a permanent or semi-permanent connection is recommended or when it's difficult to keep track of portable solutions on a large job site. A small footprint makes these anchors less obstructive than larger anchors. Anchors should always be inspected and replaced after being exposed to a fall.

  • ANSI User Capacity 130 to 310 lb max.
  • OSHA User Capacity 130 to 425 lb max.
  • Features 2" x 4-1/2" un-plated alloy steel anchoring plate and plated steel D-ring
  • Plain steel anchoring plate is ideally suited for permanent weld-on installation
  • 1/2" holes also provided for bolt-on fixed position installation
  • Alloy steel Installation Plate
  • 5,000 lb min. static strength D-ring Plated alloy
  • Complies with ANSI Z359.18-2017 and OSHA 1926.502 and 1910.66

User Manual (Click for PDF)

Spec Sheet (Click for PDF)
