Home » Heavy Duty Industrial Crossover - 4 Step, Steel - Ballymore
Ballymore

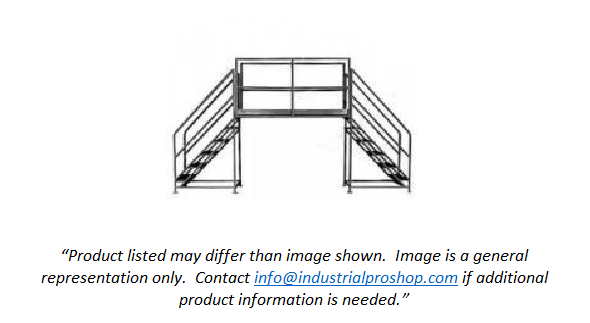

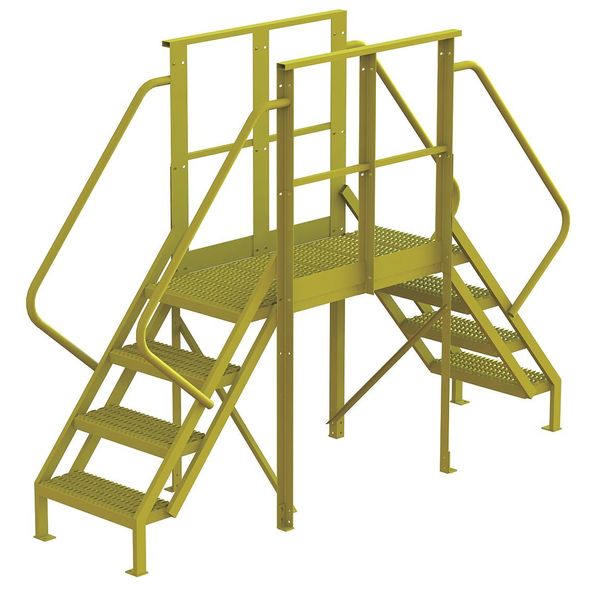

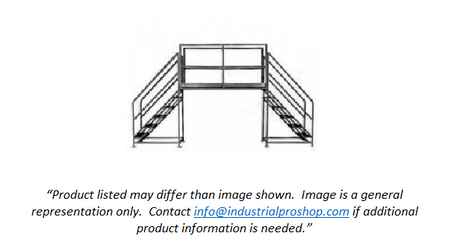

Heavy Duty Industrial Crossover - 4 Step, Steel - Ballymore

SKU: CS427-CB227
$3,181.32
Platform Length
Overall Width
Estimated Lead Time:2 to 4 Weeks

Ballymore Heavy Duty Industrial Crossovers provide safe walkways over a variety of obstacles such as conveyors, machines, and pipes.

    Made in the USA
    • 800 lb. rated capacity.
    • Stair sections have 10” step spacing with 9” of horizontal run per step.
    • Stairway slope allows forward facing descent.
    • Full rails, midrails and toeboards.
    • Structural frame and rails are heavy 1-1/4” schedule 40 pipe.
    • Each stair section has four legs with large, pre-drilled plates to bolt to the floor.
    • Gray powder coat finish.
    • Ships unassembled.
    • Crossover Bridges meet applicable OSHA and ANSI standards.
