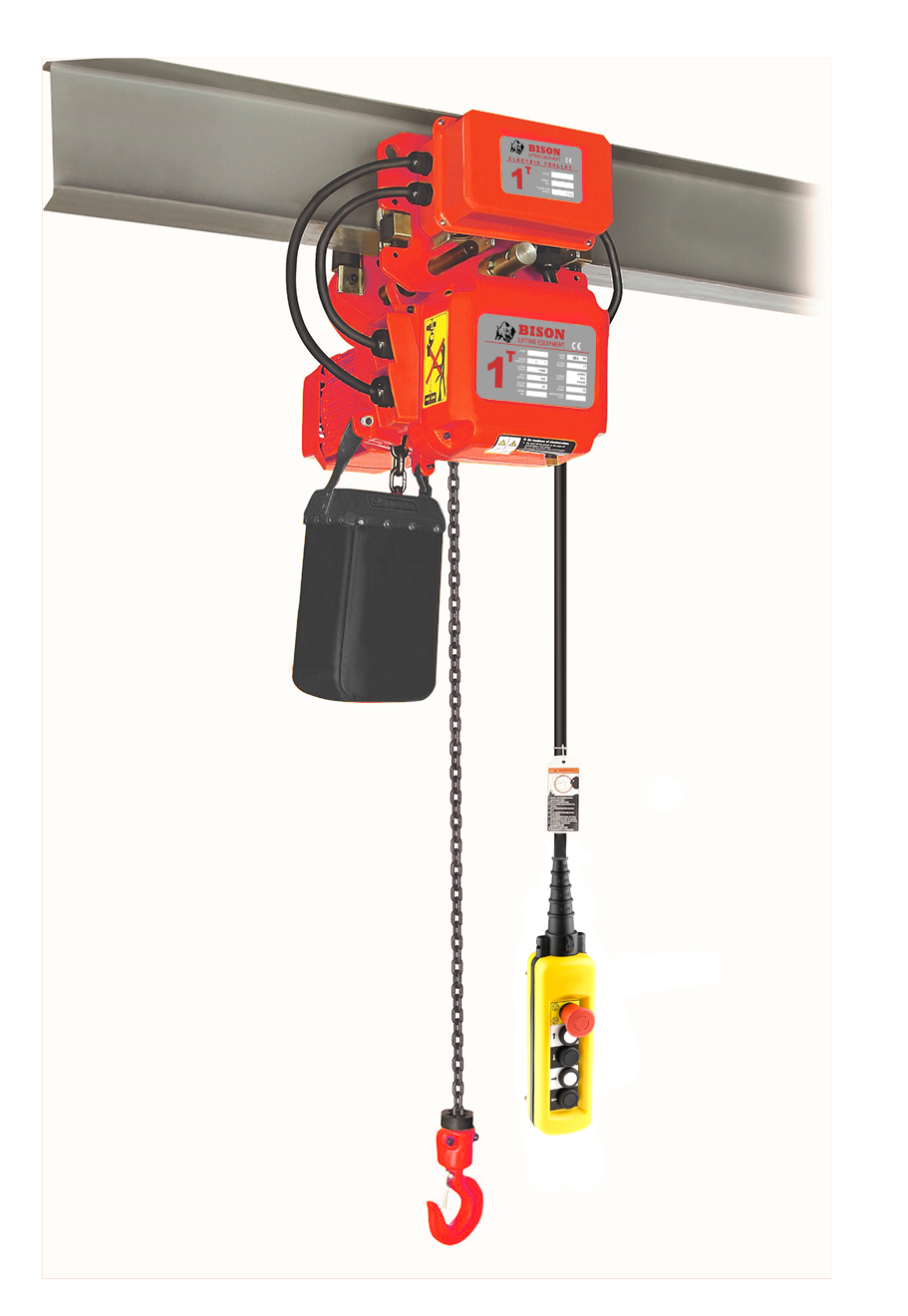

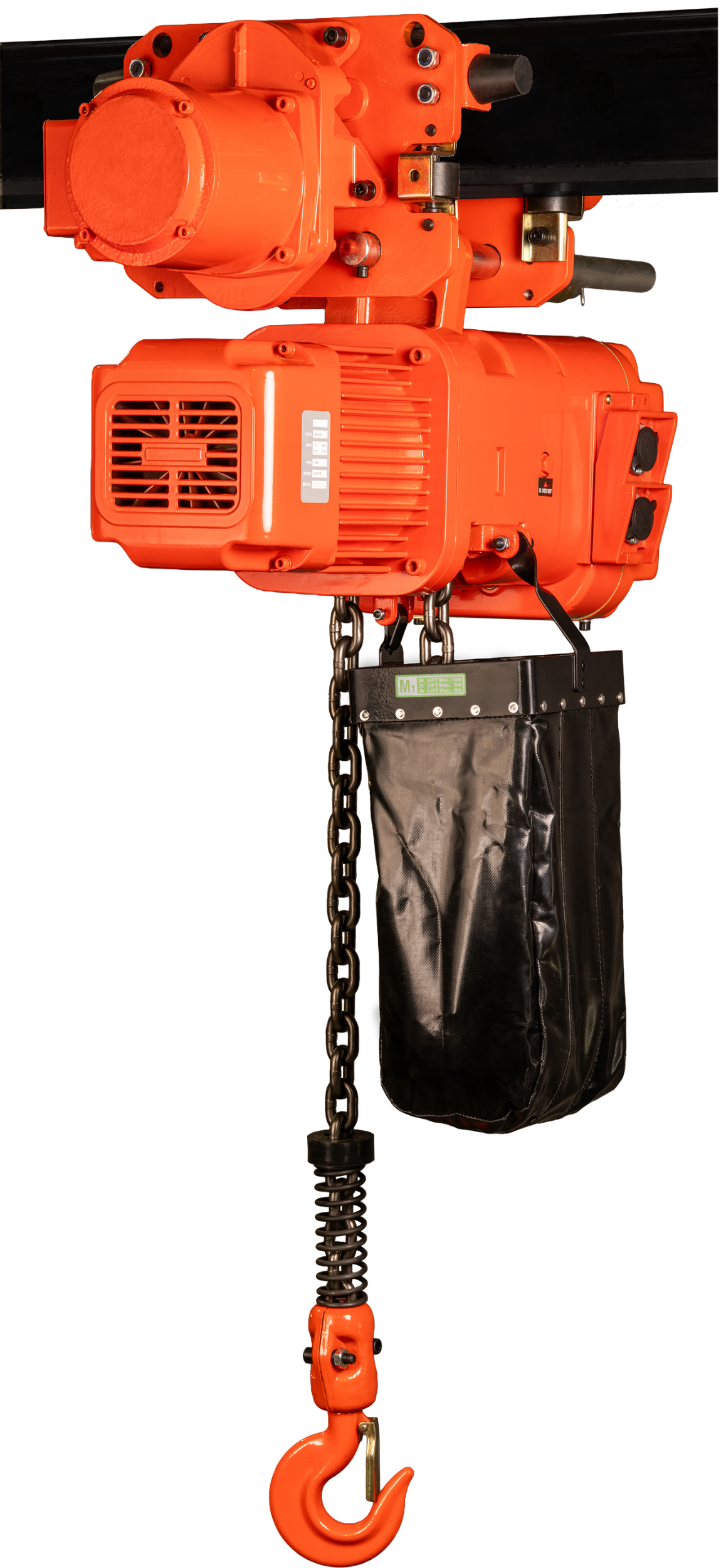

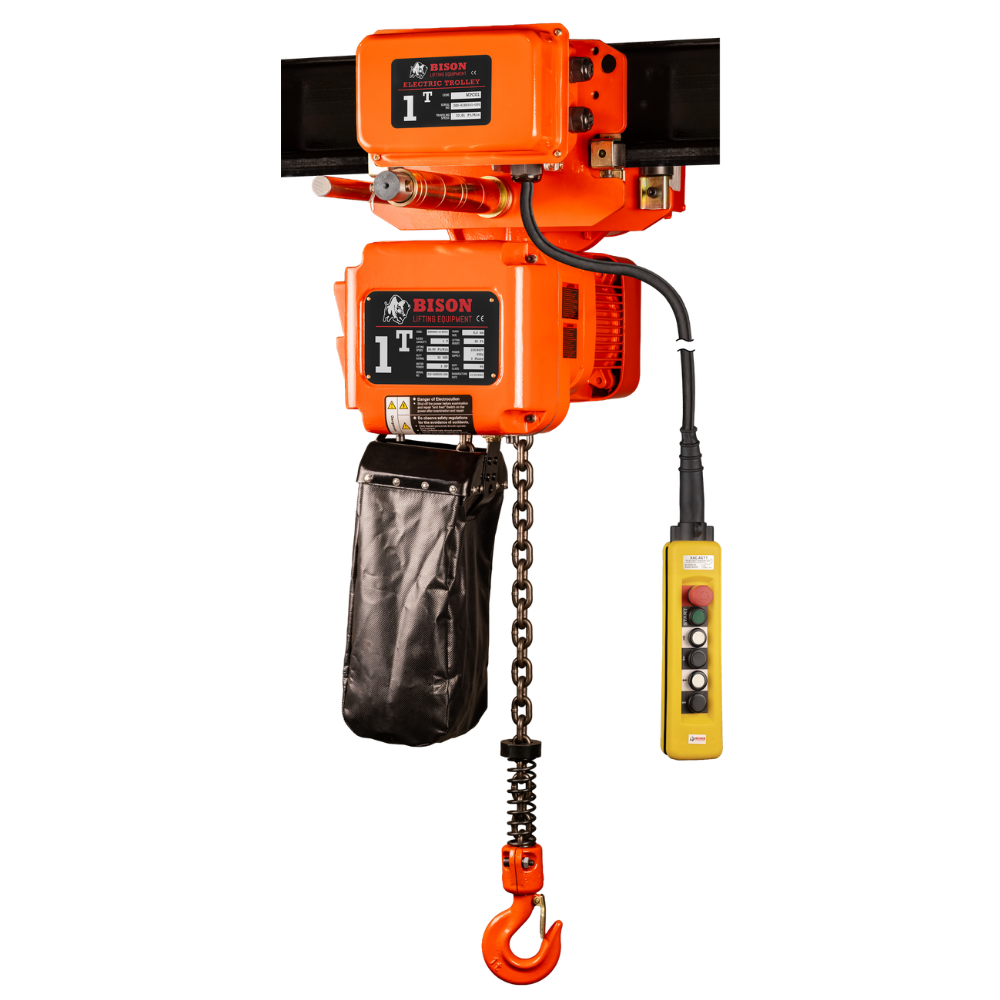

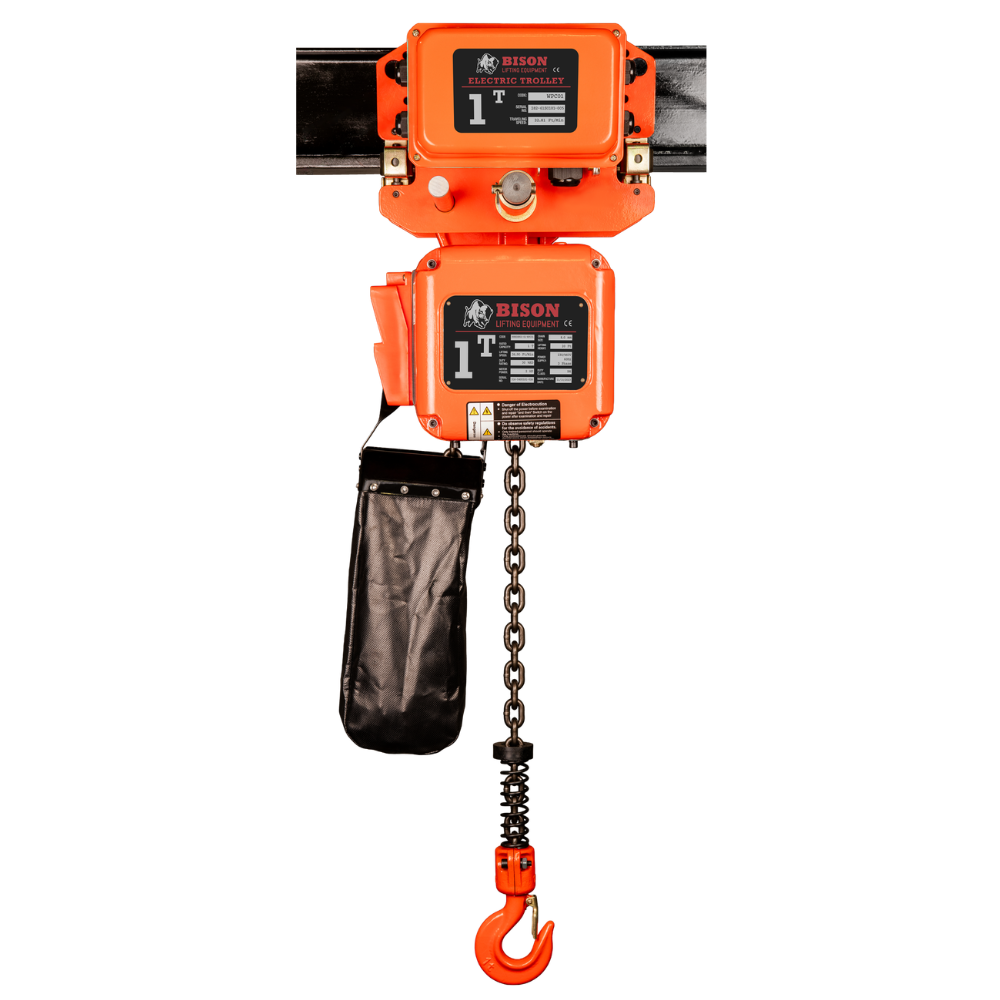

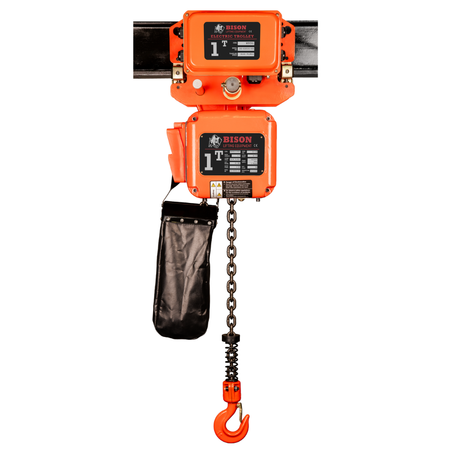

1 ton Electric Chain Hoist w/ Motorized Trolley - Bison Lifting - Dual Speed, Three Phase, 20' Lift

SKU: HHBDSK01-01D+WPC01D
$5,682.16
Estimated Lead Time:1 to 2 Weeks

Designed and built to last, these hoists are made for heavy-duty hoisting applications. The swing-down panel allows for quick and convenient access to the control panel during maintenance and inspections. These hoists are dual voltage and can be easily adjusted to suit 230 or 460-volt power supply.
    • 20 ft. Standard lift (custom lifts available)
    • Motorized Trolley Included
    • Lift Speed: Dual 23.6/7.9 fpm (feet per minute)
    • Trolley Travel Speed: Dual 90/32 fpm (feet per minute)
    • Fits Beam Flange: 3.15" to 12"
    • 15 ft. Power cord.
    • 16’ ft. Standard Pendant cord.
    • H4 Classification.
    • Ergonomic push button pendant controller (IP65)
    • Pull-Rotor Motor Brake
    • Upper/Lower Limit Switches
    • Chain Container Included
    • Load test / Inspection Certificate Included
