Home » 1/8 ton Electric Chain Hoist w/ Push-Pull Trolley - Harrington EQP - Two Speed 230/460v Three Phase
Harrington

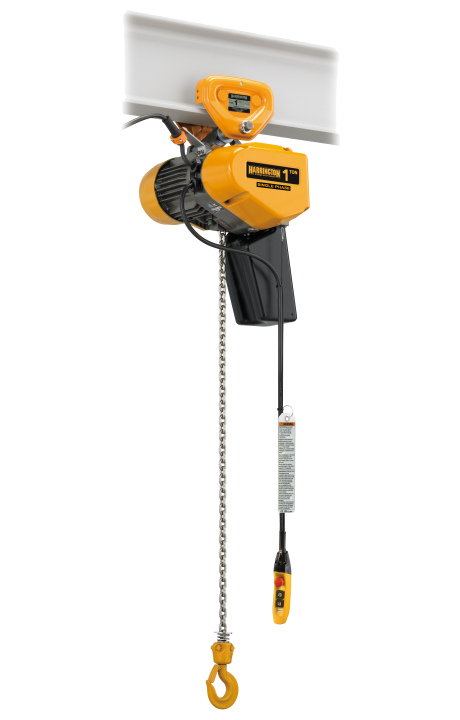

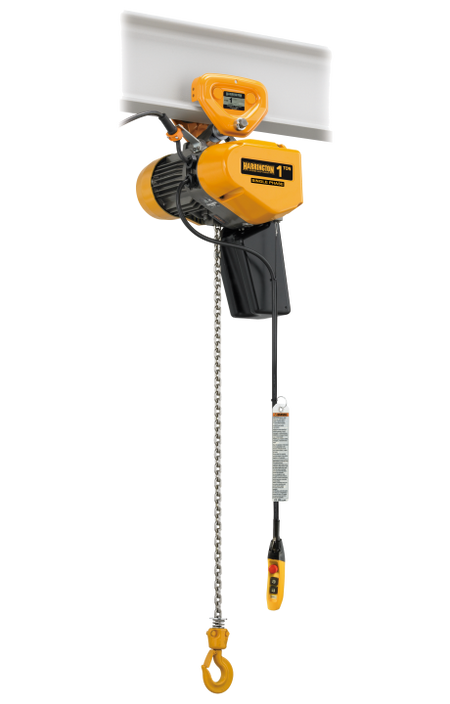

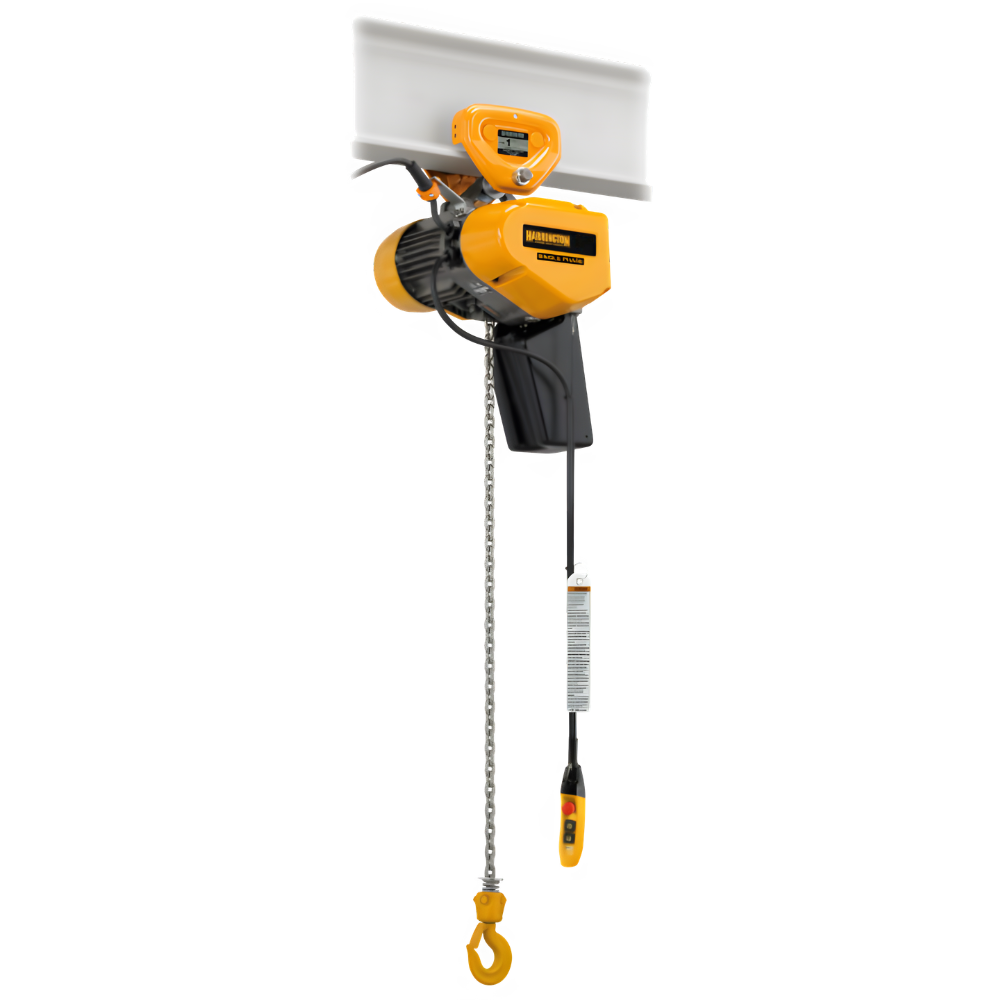

1/8 ton Electric Chain Hoist w/ Push-Pull Trolley - Harrington EQP - Two Speed 230/460v Three Phase

SKU: EQP001SD-230-10
$2,794.24
Lift Length
Voltage
Estimated Lead Time:2 to 3 Weeks

Mounting Harrington's EQ Series single-phase dual-speed (VFD Control) electric chain hoist to our PT push trolley will create an easy and economical method of transporting the load.  The combination is ideal for workstations and short or infrequent moves.
    • 1/8 ton capacity
    • Model: EQP
    • VFD Dual Speed Motor
    • 56/9 fpm (feet per minute) lifting speed
    • Push-Pull Manually Operated Trolley
    • Push-Button Included @ 4' Less than Lift Length
    • 15' Power Supply Cord Included
    • Chain Container Included
    • Nickel-Plated, Grade 80 Load Chain
    • Lightweight Aluminum Hoist Body
    • Adjustable Flange Width:  2.28" to 4.00" (call or email for larger adjustment pricing)

    User Manual (pdf)

    Spec Sheet (pdf)
