Home » Beam Stanchion Temporary HLL System - 30ft - 4" to 12" Beam Clamps
Falltech

Beam Stanchion Temporary HLL System - 30ft - 4" to 12" Beam Clamps

SKU: 6033012
$1,175.29
Estimated Lead Time:2 to 4 Weeks

Horizontal lifeline stanchion kit for temporary or permanent installation.

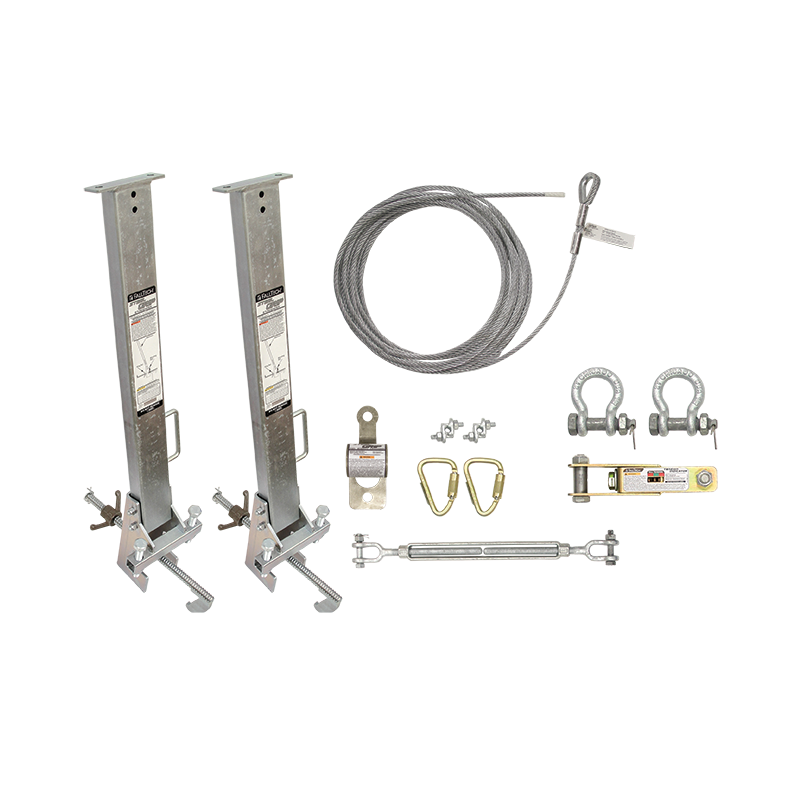

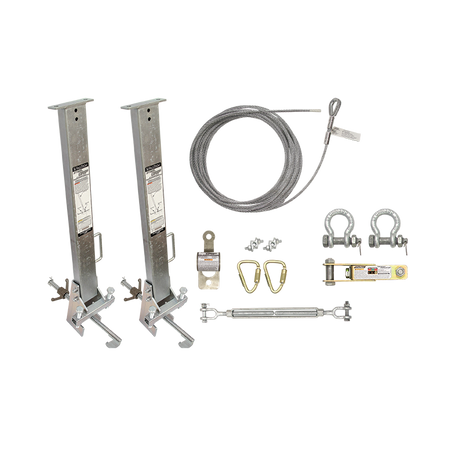

Kit includes horizontal lifeline, shock absorber, tensioner, carabiners, stanchions & mounting brackets.
  • 30' Horizontal Lifeline Kit for Single Span
  • Qty. 2 Stanchions
  • Adjustable to mount to beam flanges from 4" to 12" wide
  • 3/8" dia. galvanized steel cable
  • Stanchions: Plated carbon steel post, base and clamp
  • Carabiners: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
  • Qty. 1 stainless steel coil energy absorber and 2 connecting carabiners
  • In-line tension indicator included with 2 galvanized steel shackles
  • Wire rope clips and tensioning turnbuckle
  • Cable HLL System meets OSHA 1926.502 and 1910.140 regulations
  • OSHA User Capacity 310 lb max. per user / 2 users max. per single span

User Manual (pdf)

Declaration of Conformance (pdf)

Spec Sheet (pdf)
