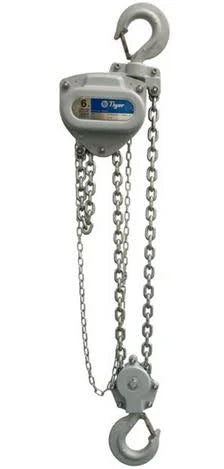

5 ton Hand Chain Hoist - Corrosion Resistant - Subsea Series - Tiger Lifting

SKU: SS20-0500-10
$1,343.20
Lift Length
Estimated Lead Time:1 to 2 Weeks

With the advantages of having been fully protected against corrosion, the SS20 is the ideal block for salt water use with less maintenance and servicing costs.
    • 5 Ton (10000 lbs) Capacity
    • Suitable for use in multi-immersion applications
    • DNV GL Verification tested according to NORSOK R-002
    • Over 1000 hours continuous protection
    • Unique corrosion protection of all the internal parts including load and hand chain, ensuring over 1000 hours continuous protection under ASTM B117 Salt spray conditions
    • Marine specific friction discs
    • Double cover protection for brake chamber
    • Stainless steel fittings and fasteners
    • Patented Quad Cam Pawl System
    • Safety Brake: The highly efficient brake system works instantly when the operation is stopped and securely holds the load. Loads are lowered under perfect control, allowing for precise operations. Tiger chain blocks easily pass the brake lock out test as per BS 3243:1990 with a 2% load of the rated capacity.
    • -40°C to +50°C (-40°F to +122°F) Operating temperature range
    • These units meet and exceed all the requirements within BS EN 13157:2004+A1:2009, ANSI/ASME B30.16, AS1418.2 and SANS 1594

    Data Sheet (pdf)

    User Manual (pdf)
