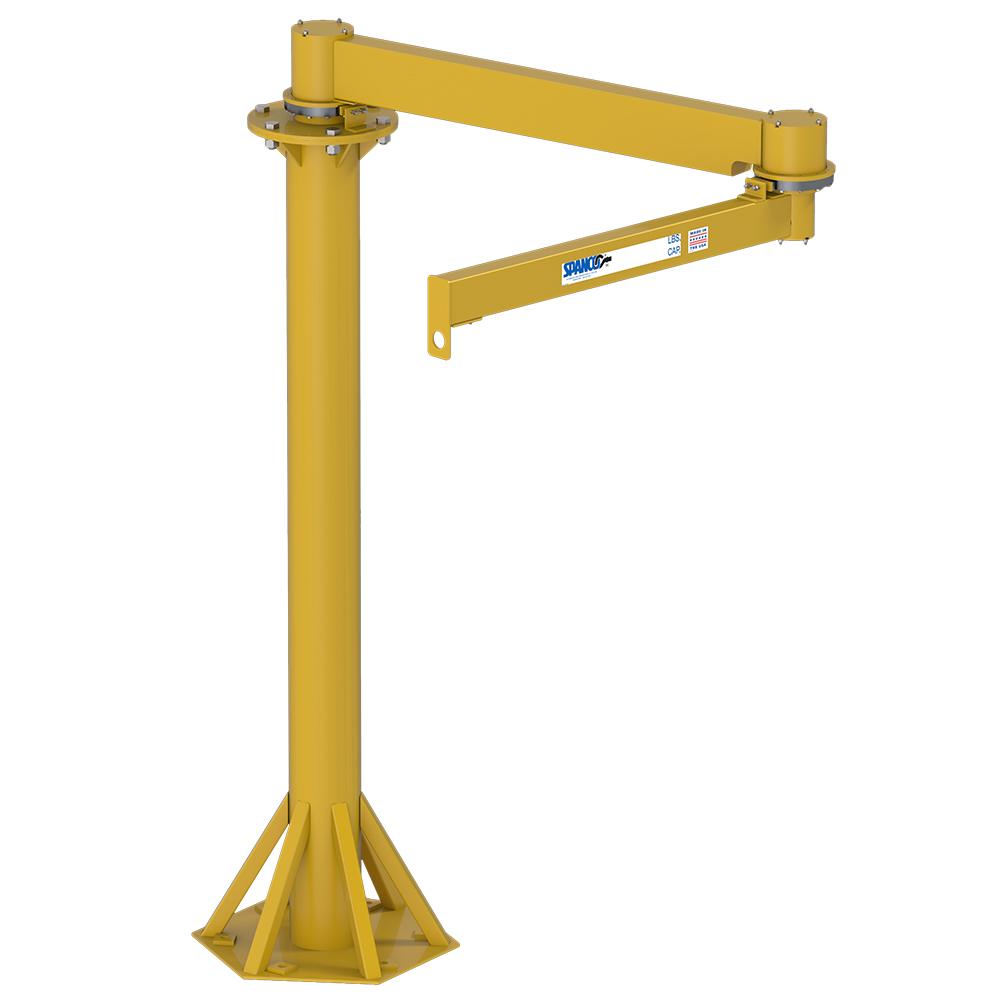

1/8 ton Articulating Jib Crane. 16'-0" Span, 10'-0" Height
Couldn't load pickup availability
• 1/8 ton (250 lbs.) Capacity
• 16'-0" Span
• 12'-0" Floor to Clevis Height
• 360° Rotation
• Double Pivot Point Design
Made in the U.S.A.

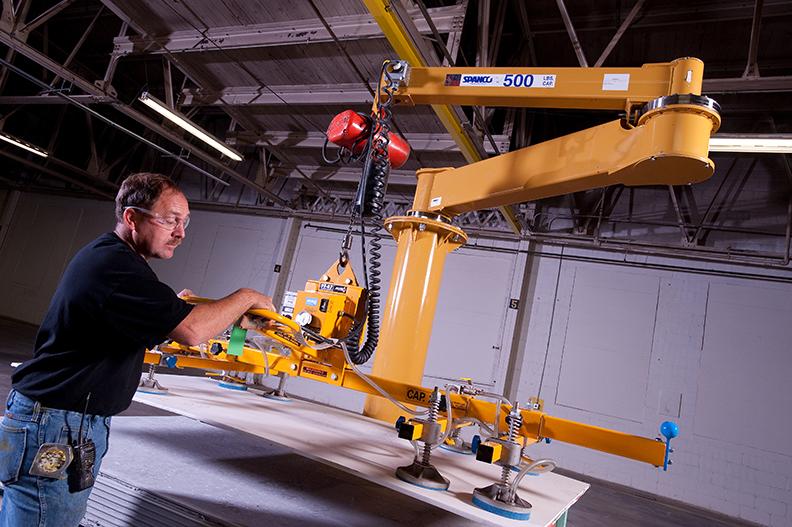

Spanco's articulating jib cranes can lift loads around corners and columns, reach into or under machinery and containers, and service virtually any point between the pivot anchor and the far reach of the boom.
The base plate is designed to allow the jib to be anchored to most existing concrete floors, therefore eliminating the requirement for an expensive and invasive footing.
*It is the responsibility of the purchaser to determine the adequacy of the mounting concrete based on the crane loads. Consultation with a qualified engineer is recommended. (If additional assistance is needed please contact Industrial Pro Shop directly )
*Typically ships within 6 to 8 weeks
