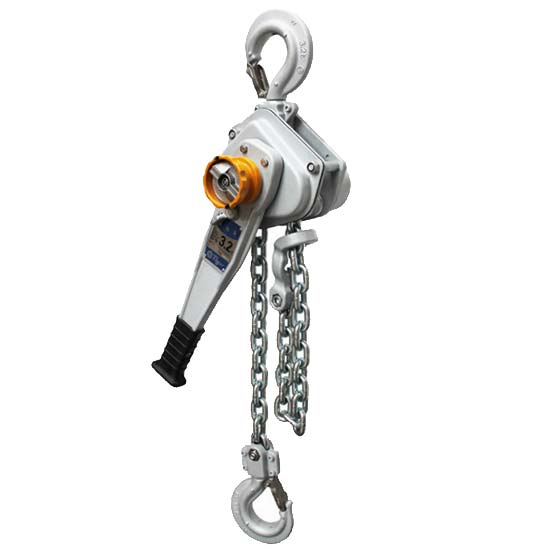

1.5 ton Lever Chain Hoist - Corrosion Resistant - Subsea Series - Tiger Lifting

SKU: SS19-0150-10
$813.60
Lift Length
Estimated Lead Time:1 to 2 Weeks

The SS19 hoist has been designed and refined specifically for usage in Subsea environments. With exceptional characteristics such as one-piece pinion gears and a Quad Cam Pawl System, along with anti-corrosive elements integrated into the product range, it offers substantial safety benefits compared to typical lever hoists. As a result, the SS19 is the ideal hoist for any demanding marine or extreme applications.
    • 1.5 ton (3000 lbs.) capacity
    • Suitable for use in multi-immersion applications
    • DNV GL Verification tested according to NORSOK R-002
    • Over 1000 hours continuous protection
    • Unique corrosion protection of all the internal parts including load and hand chain, ensuring over 1000 hours continuous protection under ASTM B117 Salt spray conditions
    • Marine specific friction discs
    • Double cover protection for brake chamber
    • Stainless steel fittings and fasteners
    • Patented Quad Cam Pawl System
    • Safety Brake: The highly efficient brake system works instantly when the operation is stopped and securely holds the load. Loads are lowered under perfect control, allowing for precise operations. Tiger chain blocks easily pass the brake lock out test as per BS 3243:1990 with a 2% load of the rated capacity.
    • -40°C to +50°C (-40°F to +122°F) Operating temperature range
    • These units meet and exceed all the requirements within BS EN 13157:2004+A1:2009, ANSI/ASME B30.16, AS1418.2 and SANS 1594

    Data Sheet (pdf)
